# # Logistic Regression

# In[1]:


from IPython.display import Image
Image('../../../python_for_probability_statistics_and_machine_learning.jpg')


# The Bernoulli distribution we studied earlier answers the question of which of
# two outcomes ($Y \in \lbrace 0,1 \rbrace$) would be selected with probability,
# $p$.
#
# $$
# \mathbb{P}(Y) = p^Y (1-p)^{ 1-Y }
# $$
#
#  We also know how to solve the corresponding likelihood function for
# the maximum likelihood estimate of $p$ given observations of the output,
# $\lbrace Y_i \rbrace_{i=1}^n$. However, now we want to include other factors in
# our estimate of $p$. For example, suppose we observe not just the outcomes, but
# a corresponding continuous variable, $x$. That is, the observed data is now
# $\lbrace (x_i,Y_i) \rbrace_{i=1}^n$  How can we incorporate $x$ into our
# estimation of $p$?
#
# The most straightforward idea is to model $p= a x + b$ where $a,b$ are
# parameters of a fitted line. However, because $p$ is a probability with value
# bounded between zero and one, we need to wrap this estimate in another function
# that can map the entire real line into the $[0,1]$ interval. The logistic
# (a.k.a. sigmoid) function has this property,
#
# $$
# \theta(s) = \frac{e^s}{1+e^s}
# $$
#
#  Thus, the new parameterized estimate for $p$ is the following,
#
# <!-- Equation labels as ordinary links -->
# <div id="eq:prob"></div>
#
# $$
# \begin{equation}
# \hat{p} = \theta(a x+b)= \frac{e^{a x + b}}{1+e^{a x + b}}
# \label{eq:prob} \tag{1}
# \end{equation}
# $$
#
#  This is usually expressed using the *logit* function,
#
# $$
# \texttt{logit}(t)= \log \frac{t}{1-t}
# $$
#
#  as,
#
# $$
# \texttt{logit}(p) = b + a x
# $$
#
#  More continuous variables can be accommodated easily as
#
# $$
# \texttt{logit}(p) = b + \sum_k a_k x_k
# $$
#
#  This can be further extended beyond the binary case to multiple
# target labels. The maximum likelihood estimate of this uses
# numerical optimization methods that are implemented in Scikit-learn.
#
# Let's construct some data to see how this works. In the following, we assign
# class labels to a set of randomly scattered points in the two-dimensional
# plane,

# In[2]:


get_ipython().run_line_magic('matplotlib', 'inline')

import numpy as np
from matplotlib.pylab import subplots
v = 0.9
@np.vectorize
def gen_y(x):
    if x<5: return np.random.choice([0,1],p=[v,1-v])
    else:   return np.random.choice([0,1],p=[1-v,v])

xi = np.sort(np.random.rand(500)*10)
yi = gen_y(xi)


# **Programming Tip.**
#
# The `np.vectorize` decorator used in the code above makes it easy to avoid
# looping in code that uses Numpy arrays by embedding the looping semantics
# inside of the so-decorated function. Note, however, that this does not
# necessarily accelerate the wrapped function. It's mainly for convenience.
#
#
#
# [Figure](#fig:logreg_001) shows a scatter plot of the data we constructed in
# the above code, $\lbrace (x_i,Y_i) \rbrace$. As constructed, it is more
# likely that large values of $x$ correspond to $Y=1$. On the other hand, values
# of $x \in [4,6]$ of either category are heavily overlapped. This means that $x$
# is not a particularly strong indicator of $Y$ in this region.
# [Figure](#fig:logreg_002) shows the fitted logistic regression curve against the
# same
# data. The points along the curve are the probabilities that each point lies in
# either of the two categories. For large values of $x$ the curve is near one,
# meaning that the probability that the associated $Y$ value is equal to one. On
# the other extreme, small values of $x$ mean that this probability is close to
# zero.  Because there are only two possible categories, this means that the
# probability of $Y=0$ is thereby higher. The region in the middle corresponding
# to the middle probabilities reflect the ambiguity between the two catagories
# because of the overlap in the data for this region. Thus, logistic regression
# cannot make a strong case for one category here.
# The following code fits the logistic regression model,

# In[3]:


fig,ax=subplots()
_=ax.plot(xi,yi,'o',color='gray',alpha=.3)
_=ax.axis(ymax=1.1,ymin=-0.1)
_=ax.set_xlabel(r'$X$',fontsize=22)
_=ax.set_ylabel(r'$Y$',fontsize=22)


# In[4]:


from sklearn.linear_model import LogisticRegression
lr = LogisticRegression()
lr.fit(np.c_[xi],yi)


# In[5]:


fig,ax=subplots()
xii=np.linspace(0,10,20)
_=ax.plot(xii,lr.predict_proba(np.c_[xii])[:,1],'k-',lw=3)
_=ax.plot(xi,yi,'o',color='gray',alpha=.3)
_=ax.axis(ymax=1.1,ymin=-0.1)
_=ax.set_xlabel(r'$x$',fontsize=20)
_=ax.set_ylabel(r'$\mathbb{P}(Y)$',fontsize=20)


# <!-- dom:FIGURE: [fig-machine_learning/logreg_001.png, width=500 frac=0.75]
# This scatterplot shows the binary $Y$ variables and the corresponding $x$ data
# for each category. <div id="fig:logreg_001"></div> -->
# <!-- begin figure -->
# <div id="fig:logreg_001"></div>
#
# <p>This scatterplot shows the binary $Y$ variables and the corresponding $x$
# data for each category.</p>
# <img src="fig-machine_learning/logreg_001.png" width=500>
#
# <!-- end figure -->
#
#
# <!-- dom:FIGURE: [fig-machine_learning/logreg_002.png, width=500 frac=0.75]
# This shows the fitted logistic regression on the data shown in
# [Figure](#fig:logreg_001). The points along the curve are the probabilities that
# each point lies in either of the two categories.  <div
# id="fig:logreg_002"></div> -->
# <!-- begin figure -->
# <div id="fig:logreg_002"></div>
#
# <p>This shows the fitted logistic regression on the data shown in
# [Figure](#fig:logreg_001). The points along the curve are the probabilities that
# each point lies in either of the two categories.</p>
# <img src="fig-machine_learning/logreg_002.png" width=500>
#
# <!-- end figure -->
#
#
# For a deeper understanding of logistic regression, we need to alter our
# notation slightly and once again use our projection methods. More generally we
# can rewrite Equation [eq:prob](#eq:prob) as the following,
#
# <!-- Equation labels as ordinary links -->
# <div id="eq:probbeta"></div>
#
# $$
# \begin{equation}
# p(\mathbf{x}) = \frac{1}{1+\exp(-\boldsymbol{\beta}^T \mathbf{x})}
# \label{eq:probbeta} \tag{2}
# \end{equation}
# $$
#
#  where $\boldsymbol{\beta}, \mathbf{x}\in \mathbb{R}^n$.  From our
# prior work on projection we know that the signed perpendicular distance between
# $\mathbf{x}$ and the linear boundary described by $\boldsymbol{\beta}$ is
# $\boldsymbol{\beta}^T \mathbf{x}/\Vert\boldsymbol{\beta}\Vert$.  This means
# that the probability that is assigned to any point in $\mathbb{R}^n$ is a
# function of how close that point is to the linear boundary described by the
# following equation,
#
# $$
# \boldsymbol{\beta}^T \mathbf{x} = 0
# $$
#
#  But there is something subtle hiding here. Note that
# for any $\alpha\in\mathbb{R}$,
#
# $$
# \alpha\boldsymbol{\beta}^T \mathbf{x} = 0
# $$
#
#  describes the *same* hyperplane. This means that we can multiply
# $\boldsymbol{\beta}$ by an arbitrary scalar and still get the same geometry.
# However, because of $\exp(-\alpha\boldsymbol{\beta}^T \mathbf{x})$ in Equation
# [eq:probbeta](#eq:probbeta), this scaling determines the intensity of the
# probability
# attributed to $\mathbf{x}$. This is illustrated in [Figure](#fig:logreg_003).
# The panel on the left shows two categories (squares/circles) split by the
# dotted line that is determined by $\boldsymbol{\beta}^T\mathbf{x}=0$. The
# background colors shows the probabilities assigned to points in the plane.  The
# right panel shows that by scaling with $\alpha$, we can increase the
# probabilities of class membership for the given points, given the exact same
# geometry. The points near the boundary have lower probabilities because they
# could easily be on the opposite side.  However, by scaling by $\alpha$, we can
# raise those probabilities to any desired level at the cost of driving the
# points further from the boundary closer to one. Why is this a problem? By
# driving the probabilities arbitrarily using $\alpha$, we can overemphasize the
# training set at the cost of out-of-sample data. That is, we may wind up
# insisting on emphatic class membership of yet unseen points that are close to
# the boundary that otherwise would have more equivocal probabilities (say, near
# $1/2$).  Once again, this is another manifestation of bias/variance trade-off.
#

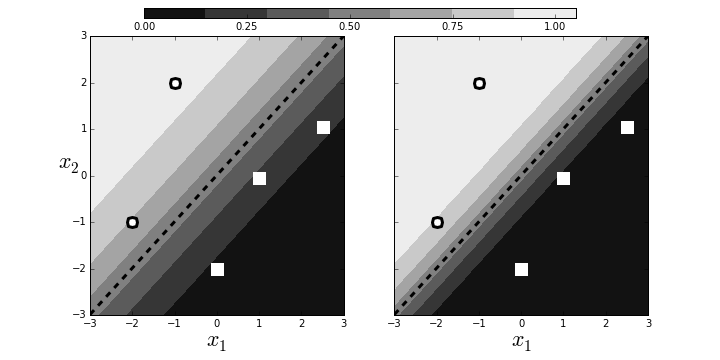

# <!-- dom:FIGURE: [fig-machine_learning/logreg_003.png, width=500 frac=1.25]
# Scaling can arbitrarily increase the probabilities of points near the decision
# boundary.   <div id="fig:logreg_003"></div> -->
# <!-- begin figure -->
# <div id="fig:logreg_003"></div>
#
# <p>Scaling can arbitrarily increase the probabilities of points near the
# decision boundary.</p>
# <img src="fig-machine_learning/logreg_003.png" width=500>
#
# <!-- end figure -->
#
#
# Regularization is a method that controls this effect by penalizing the size of
# $\beta$ as part of its solution. Algorithmically, logistic regression works by
# iteratively solving a sequence of weighted least squares problems. Regression
# adds a $\Vert\boldsymbol{\beta}\Vert/C$ term to the least squares error. To see
# this in action, let's create some data from a logistic regression and see if we
# can recover it using Scikit-learn. Let's start with a scatter of points in the
# two-dimensional  plane,

# In[6]:


x0,x1=np.random.rand(2,20)*6-3
X = np.c_[x0,x1,x1*0+1] # stack as columns


# Note that `X` has a third column of all ones. This is a
# trick to allow the corresponding line to be offset from the origin
# in the two-dimensional plane. Next, we create a linear boundary
# and assign the class probabilities according to proximity to the
# boundary.

# In[7]:


beta = np.array([1,-1,1]) # last coordinate for affine offset
prd = X.dot(beta)
probs = 1/(1+np.exp(-prd/np.linalg.norm(beta)))
c = (prd>0) # boolean array class labels


# This establishes the training data.  The next block
# creates the logistic regression object and fits the data.

# In[8]:


lr = LogisticRegression()
_=lr.fit(X[:,:-1],c)


# Note that we have to omit the third dimension because of
# how Scikit-learn internally breaks down the components of the
# boundary. The resulting code extracts the corresponding
# $\boldsymbol{\beta}$ from the `LogisticRegression` object.

# In[9]:


betah = np.r_[lr.coef_.flat,lr.intercept_]


# **Programming Tip.**
#
# The Numpy `np.r_`  object provides a quick way to stack Numpy
# arrays horizontally instead of using `np.hstack`.
#
#
#
#  The resulting boundary is shown in the left panel in
# [Figure](#fig:logreg_004). The crosses and triangles represent the two classes
# we
# created above, along with the separating gray line.  The logistic regression
# fit produces the dotted black line. The dark circle is the point that logistic
# regression categorizes incorrectly. The regularization parameter is $C=1$ by
# default. Next, we can change the strength of the regularization parameter as in
# the following,

# In[10]:


lr = LogisticRegression(C=1000)


# and the re-fit the data to produce the right panel in
# [Figure](#fig:logreg_004). By increasing the regularization
# parameter, we essentially nudged the fitting algorithm to
# *believe* the data more than the general model. That is, by doing
# this we accepted more variance in exchange for better bias.
#

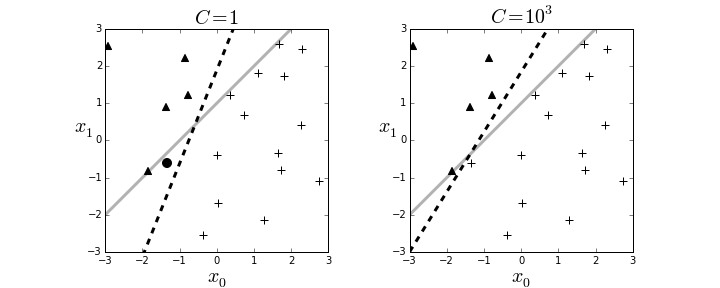

# <!-- dom:FIGURE: [fig-machine_learning/logreg_004.png, width=500 frac=1.25]  The
# left panel shows the resulting boundary (dashed line) with $C=1$ as the
# regularization parameter. The right panel is for $C=1000$. The gray line is the
# boundary used to assign the class membership for the synthetic data. The dark
# circle is the point that logistic regression categorizes incorrectly. <div
# id="fig:logreg_004"></div> -->
# <!-- begin figure -->
# <div id="fig:logreg_004"></div>
#
# <p>The left panel shows the resulting boundary (dashed line) with $C=1$ as the
# regularization parameter. The right panel is for $C=1000$. The gray line is the
# boundary used to assign the class membership for the synthetic data. The dark
# circle is the point that logistic regression categorizes incorrectly.</p>
# <img src="fig-machine_learning/logreg_004.png" width=500>
#
# <!-- end figure -->
#
#
# ## Generalized Linear Models
#
# Logistic regression is one example of a wider class of generalized linear
# models that embed non-linear transformations in the fitting process. Let's back
# up and break down logistic regression into smaller parts. As usual, we want to
# estimate the conditional expectation $\mathbb{E}(Y\vert X=\mathbf{x})$.  For
# plain linear regression, we have the following approximation,
#
# $$
# \mathbb{E}(Y\vert X=\mathbf{x})\approx\boldsymbol{\beta}^T\mathbf{x}
# $$
#
#  For notation sake, we call $r(x):=\mathbb{E}(Y\vert X=\mathbf{x})$
# the response. For logistic regression, because $Y\in\left\{0,1\right\}$, we
# have $\mathbb{E}(Y\vert X=\mathbf{x})=\mathbb{P}(Y\vert X=\mathbf{x})$ and the
# transformation makes $r(\mathbf{x})$ linear.
#
# $$
# \begin{align*}
# \eta(\mathbf{x}) &= \boldsymbol{\beta}^T\mathbf{x}     \\\
#         &= \log \frac{r(\mathbf{x})}{1-r(\mathbf{x})}  \\\
#         &= g(r(\mathbf{x}))
# \end{align*}
# $$
#
#  where $g$ is defined as the logistic *link* function.
# The $\eta(x)$ function is the linear predictor. Now that we have
# transformed the original data space using the logistic function to
# create the setting for the linear predictor, why don't we just do
# the same thing for the $Y_i$ data? That is, for plain linear
# regression, we usually take data, $\left\{X_i,Y_i\right\}$ and
# then use it to fit an approximation to $\mathbb{E}(Y\vert X=x)$.
# If we are transforming the conditional expectation using the
# logarithm, which we are approximating using $Y_i$, then why don't
# we correspondingly transform the binary $Y_i$ data? The answer is
# that if we did so then we would get the logarithm of zero (i.e.,
# infinity) or one (i.e., zero), which is not workable. The
# alternative is to use a linear Taylor approximation, like we did
# earlier with the delta method, to expand the $g$ function around
# $r(x)$, as in the following,
#
# $$
# \begin{align*}
# g(Y) &\approx \log\frac{r(x)}{1-r(x)} + \frac{Y-r(x)}{r(x)-r(x)^2} \\\
#      &= \eta(x)+ \frac{Y-r(x)}{r(x)-r(x)^2}
# \end{align*}
# $$
#
#  The interesting part is the $Y-r(x)$ term, because this is where the
# class label data enters the problem. The expectation $\mathbb{E}(Y-r(x)\vert
# X)=0$ so we can think of this differential as additive noise that dithers
# $\eta(x)$. The variance of $g(Y)$ is the following,
#
# $$
# \begin{align*}
# \mathbb{V}(g(Y)\vert X)&= \mathbb{V}(\eta(x)\vert X)+\frac{1}{(r(x)(1-r(x)))^2}
# \mathbb{V}(Y-r(x)\vert X) \\\
#                        &=\frac{1}{(r(x)(1-r(x)))^2} \mathbb{V}(Y-r(x)\vert X)
# \end{align*}
# $$
#
#  Note that $\mathbb{V}(Y\vert X)=r(x)(1-r(x))$ because $Y$ is
# a binary variable. Ultimately, this boils down to the following,
#
# $$
# \mathbb{V}(g(Y)\vert X)=\frac{1}{r(x)(1-r(x))}
# $$
#
#  Note that the variance is a function of $x$, which means it is
# *heteroskedastic*, meaning that the iterative minimum-variance-finding
# algorithm that computes $\boldsymbol{\beta}$ downplays $x$ where $r(x)\approx
# 0$ and $r(x)\approx 1$ because the peak of the variance occurs where
# $r(x)\approx 0.5$, which are those equivocal points are close to the boundary.
#
#
# For generalized linear models, the above sequence is the same and consists of
# three primary ingredients: the linear predictor ($\eta(x)$), the link function
# ($g(x)$), and the *dispersion scale function*, $V_{ds}$ such that
# $\mathbb{V}(Y\vert X)=\sigma^2 V_{ds}(r(x))$. For logistic regression, we have
# $V_{ds}(r(x))=r(x)(1-r(x))$ and $\sigma^2=1$. Note that absolute knowledge of
# $\sigma^2$ is not important because the iterative algorithm needs only a
# relative proportional scale. To sum up, the iterative algorithm takes a linear
# prediction for $\eta(x_i)$, computes the transformed responses, $g(Y_i)$,
# calculates the weights $w_i=\left[(g^\prime(r(x_i))V_{ds}(r(x_i)))
# \right]^{-1}$, and then does a weighted linear regression of $g(y_i)$ onto
# $x_i$ with the weights $w_i$ to compute the next $\boldsymbol{\beta}$.
# More details can be found in the following [[fox2015applied]](#fox2015applied),
# [[lindsey1997applying]](#lindsey1997applying),
# [[campbell2009generalized]](#campbell2009generalized).
#
#
# <!-- # *Applied Predictive Modeling by Kuhn*, p. 283, -->
# <!-- # Logit function, odds ratio -->
# <!-- # *generalized linear models by Rodriguez*, p.72 -->
# <!-- # *Scikit-learn cookbook*, p.78 -->
